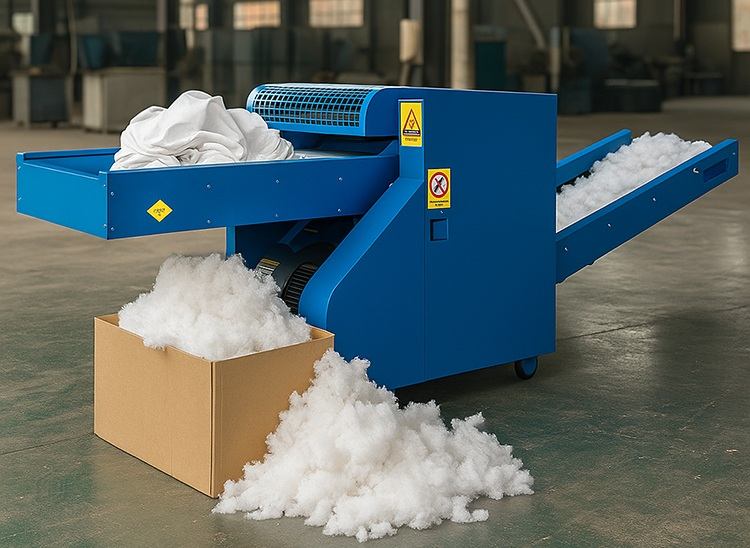

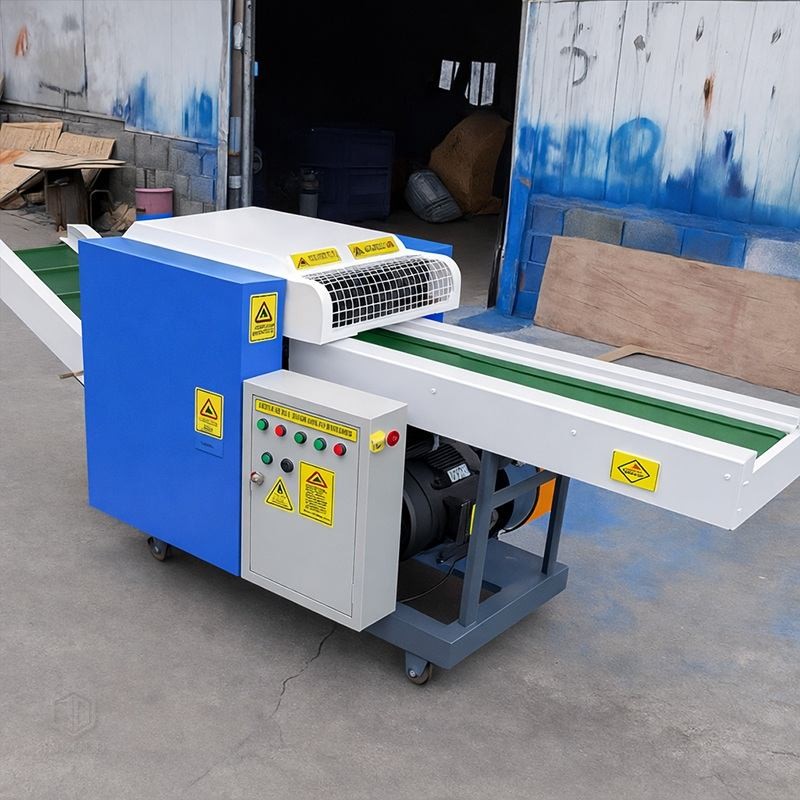

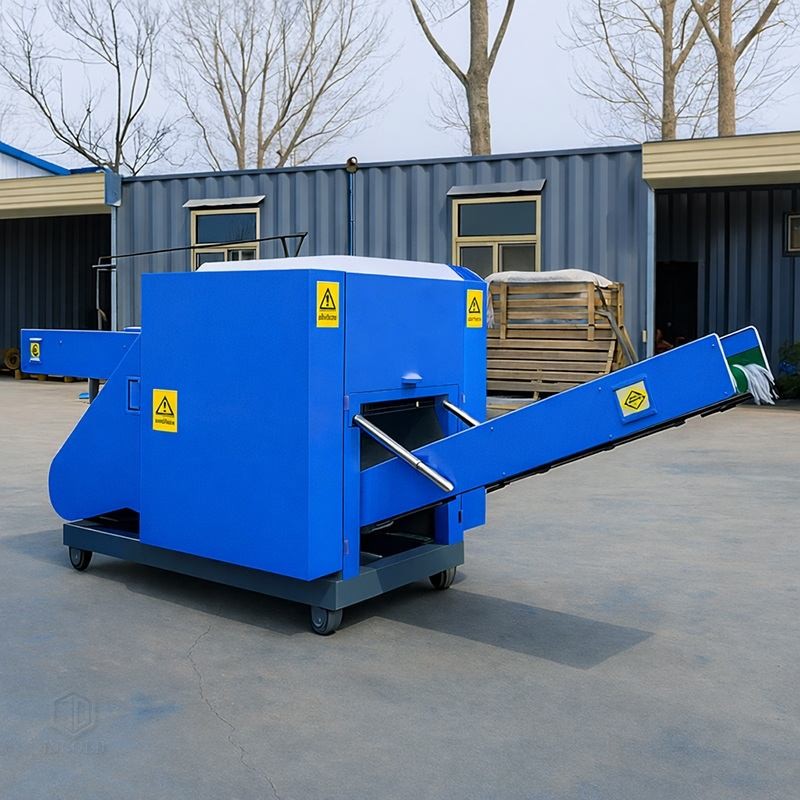

Cloth Shredder Machine Upholstery Fabric Waste Clothes Shredding Recycling Machine Price
Cloth Shredder Machine Upholstery Fabric Waste Clothes Shredding Recycling Machine Price
Clothes Crusher Machine, also called a Textile Crusher, waste Fabric Shredder, or old Clothes Shredder, is an industrial device specifically designed to shred, cut, and crush large-volume materials such as various fabrics, textiles, non-woven fabrics, and old clothes into small pieces or fibrous materials.
| Model | IN-CFS1107 | IN-CFS1208 | IN-CFS1309 |
| Capacity | 60-80KG/H | 100-300KG/H | 100-300KG/H |
| Power | 5.5KW | 11KW+1.5KW | 5.5KW+3KW |
| Voltage | 380v 50hz 3phase | ||
| Size | 600*550*1350mm | 3200*1000*1150mm | 3500*1000*1000mm |
| Weight | 120kg | 780kg | 900kg |
I. Main Functions of Cloth Crusher:
The main functions of a fabric shredder are: To shred and recycle waste fabrics, scraps, old clothes, non-woven fabrics, and other materials; To transform textile waste that could not be directly reused into reprocessable fiber fragments; To provide raw materials for subsequent equipment such as recycled Cotton Openers, balers, and filling machines.

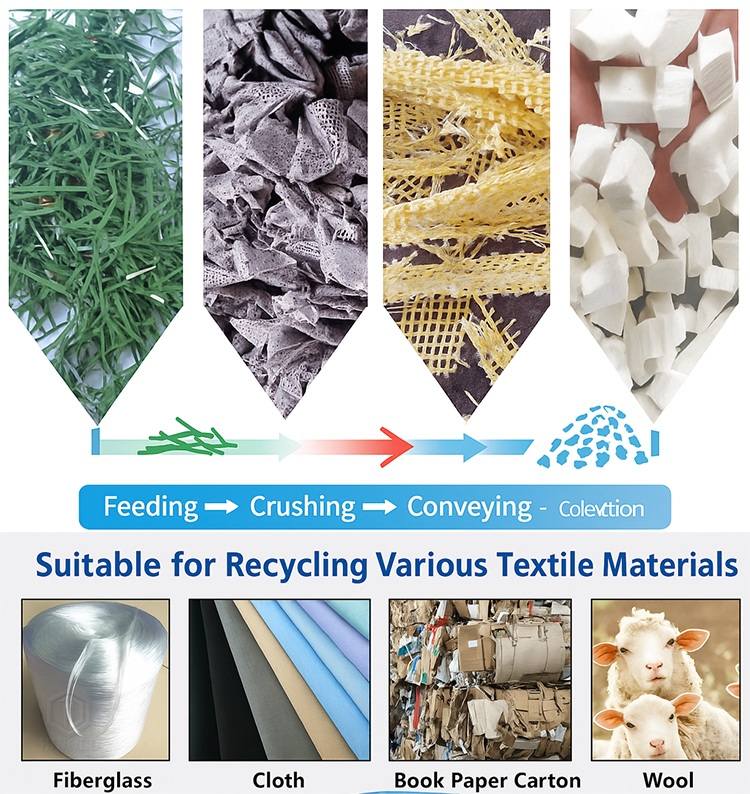

II. Working Principle of Cloth Recycling Machine:

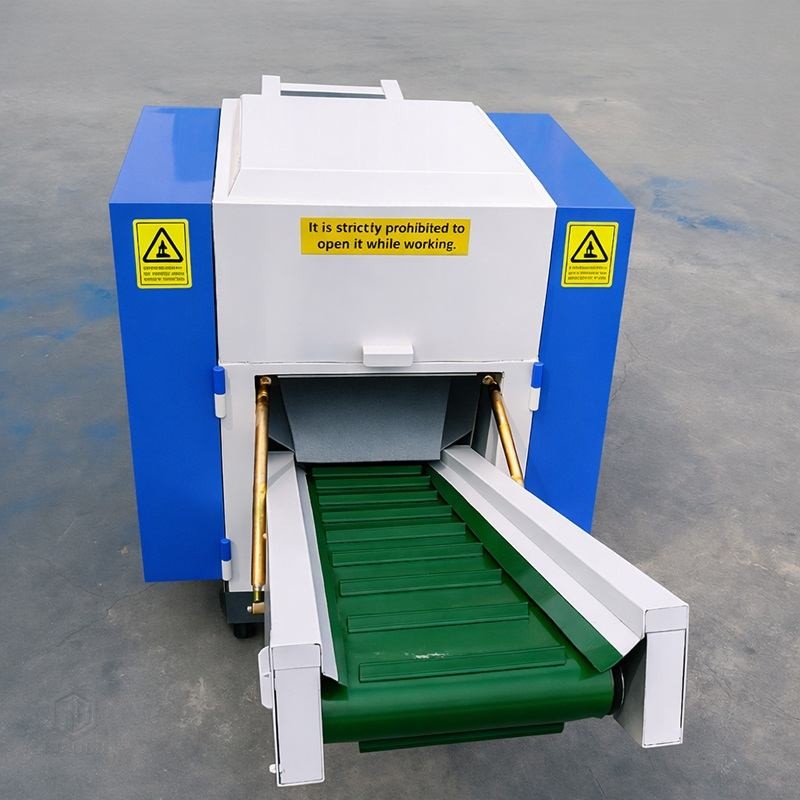

Feeding: Fabric is fed into the feed inlet via a conveyor belt or manually.
Cutting: Multiple sets of rotating blades and fixed blades are installed internally to shred the fabric through shearing and pulling actions.
Discharge: The shredded fabric is discharged via a conveyor belt or fan, entering a collection box or the next process.
III. Processable Materials of Upholstery Fabric Shredder:
Cotton, polyester, denim
Non-woven fabric, felt, textile scraps
Used clothing, sheets, carpets
Automotive interiors, sofa fabrics
Industrial fibers, synthetic fibers
IV. Equipment Features of Waste Cloth Shredding Machine:
High-efficiency shredding: Dual-shaft or single-shaft blade roller structure, suitable for fabrics of various thicknesses.

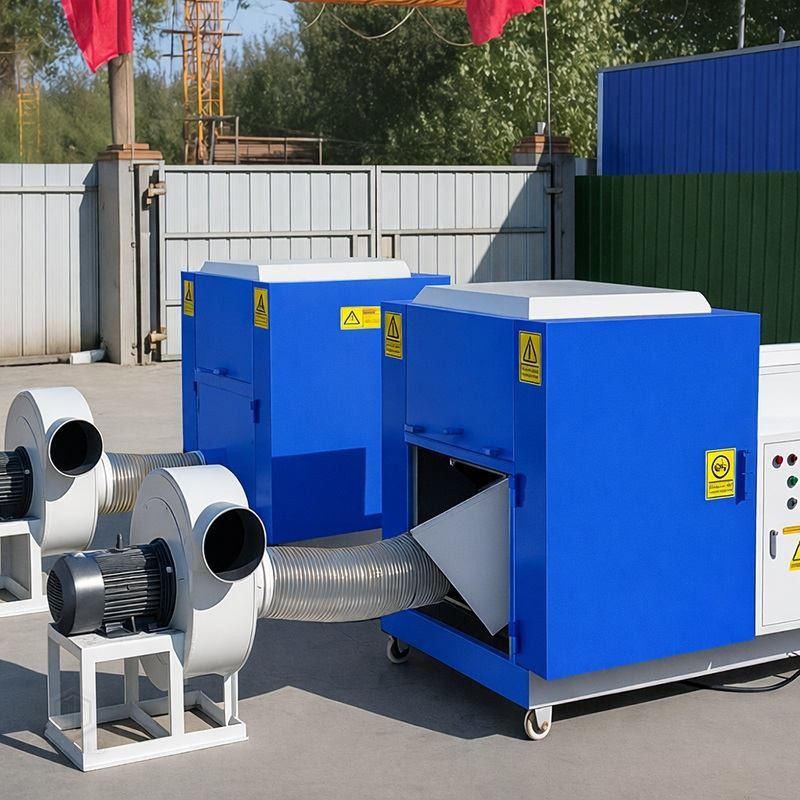

Automatic discharge: Equipped with a conveyor belt or fan system, saving labor.
Adjustable cutting size: The blade spacing or screen size can be adjusted according to requirements.
Stable and durable: The blades are made of high-alloy steel, with a long service life.
Noise reduction design: The sound level is below 80 decibels, suitable for long-term use in workshops.
V. Common Application Industries of Waste Clothes Recycling Machine:
Used clothing recycling plants
Textile recycling plants
Non-woven fabric product plants
Sofa, mattress, and toy factories
Fiber opening and filling production line
