Cnc Foam Cutter Low Maintenance Cost Foam Vertical Cutter Horizontal Cutting In Shaper Machine
Cnc Foam Cutter Low Maintenance Cost Foam Vertical Cutter Horizontal Cutting In Shaper Machine

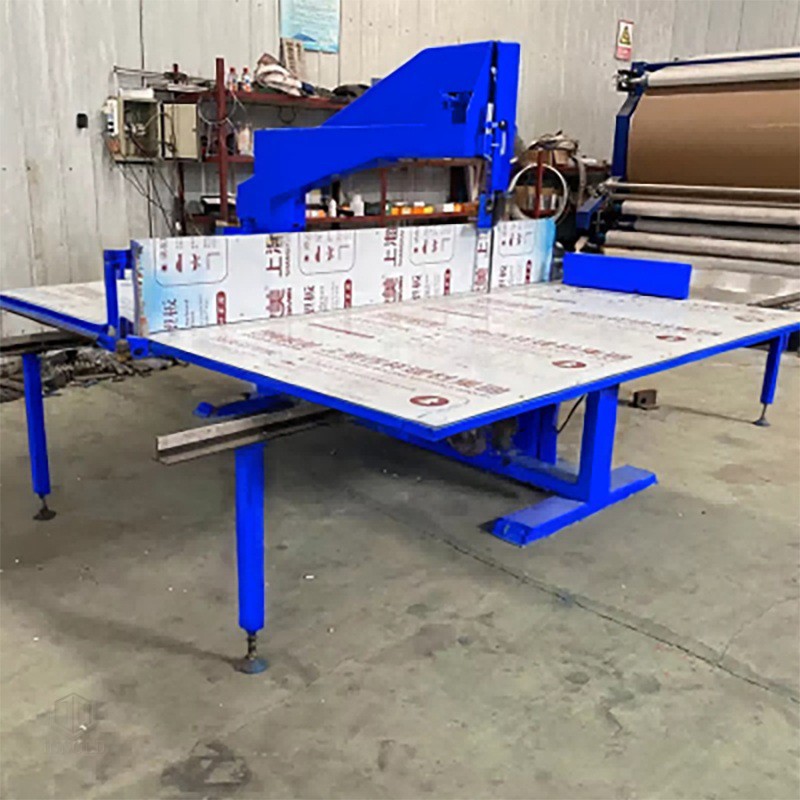

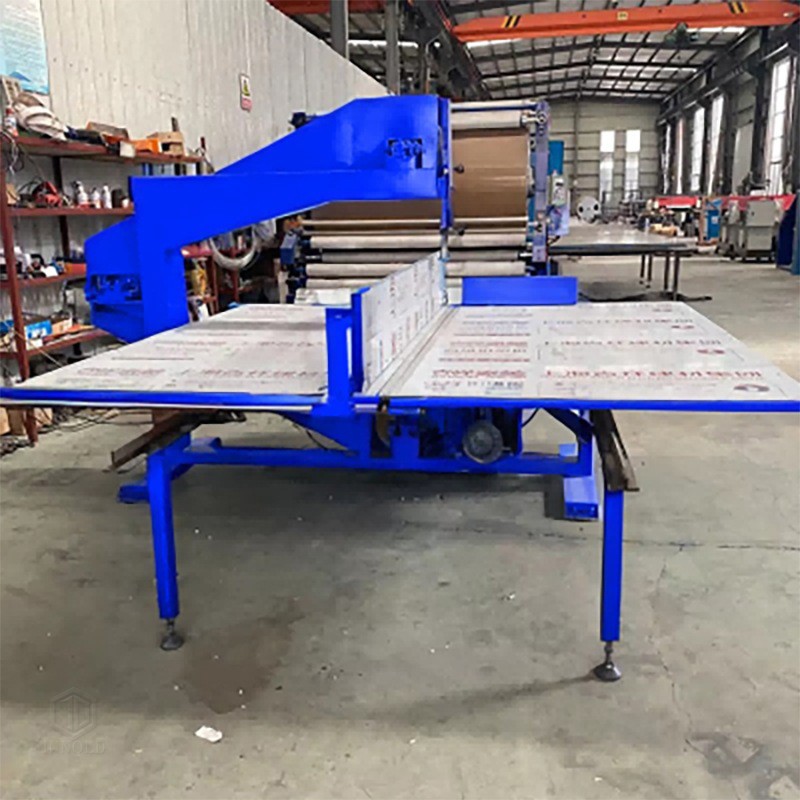

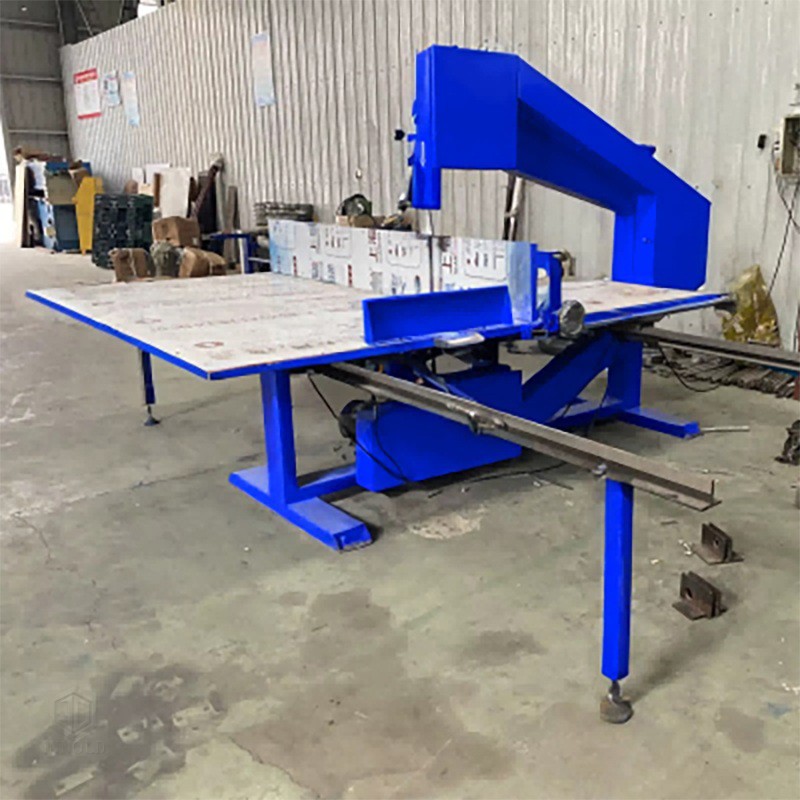

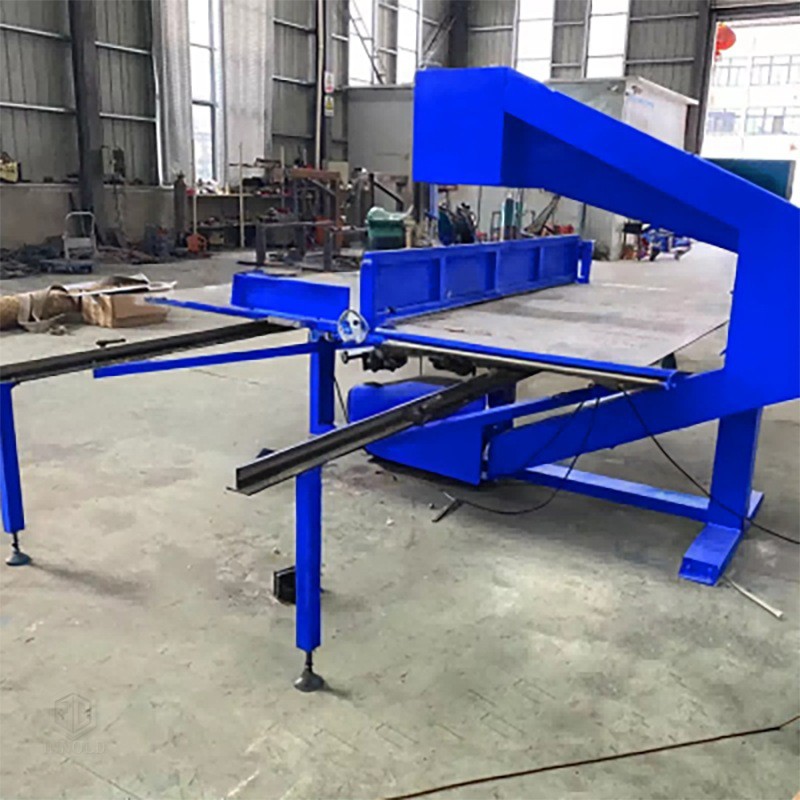

Vertical Slitting Machine is a specific commercial device developed to specifically reduce big blocks or sheets of sponge product right into strips. It is widely made use of in industries such as furnishings production, sofa manufacturing facilities, cushion production, product packaging products manufacturing facilities, automobile insides, and plaything manufacturing facilities. Its primary purpose is to quickly and nicely cut sponge into desired strips according to a predetermined size for subsequent processing or final setting up.
| Model | IN-6980 | IN-6620 | IN-4210 |
| Automatic straight cutting machine | Push-pull four-wheel straight cutting machine | Push-pull two-wheel straight cutting machine | |
| Internal workbench | 1400*1800MM | 1200*2400MM | 480*1200MM |
| Internal workbench can be cut | 1200*1300MM | 1150*2200MM | 380*1000MM |
| External workbench | 1200*1800MM | 1200*2400MM | 1200*1200MM |
| External workbench can be cut | 1200*1300MM | 1200*2200MM | 1200*1000MM |
| Baffle height | 300mm | 300mm | 200mm |
| Cutting height | 600mm | 600mm | 400mm |
| Size | 3400*3000*1950mm | 4000*2800*1950mm | 2000*2100*1720mm |
| Weight | 850KG | 600KG | 320KG |
| Total Power | 3KW | 1.68KW | 1.68KW |
| Required air pressure | 0.4-0.8MPA | NO | NO |
| Voltage | Customizable | ||
| Roller screw, linear bearing, servo motor, PLC touch screen | Yes | NO | NO |
1. Working Concept of a Foam Vertical Cutter:
Vertical Slitting Machine uses high-strength blades or a high-speed revolving blade wheel to reduce the whole sponge sheet. Combined with a specific feed system, it accomplishes continuous and consistent stripping. Typical control methods consist of:
PLC programs control
Automatic feeding and stress change
Multi-blade simultaneous cutting (high efficiency).
Flexible size, high cutting accuracy.
II. Key Functions of the Form Cutter Machine:
Automatic feeding: Continually delivers the whole sponge to the cutting location.
Multi-blade synchronised cutting: Quickly slits the sponge according to the set width.
Adjustable blade spacing: Fulfills the needs of different item widths.
Tidy, burr-free cut surfaces: Makes sure the product's subsequent usage.
Optional automatic product collection tool: Increases the automation level of the assembly line.
Main Features of Horizontal Cutting In Shaper Machine:
Simple structure,
stable operation;
precise cutting dimensions;
suitable for splitting large pieces of sponge;
adjustable cutting thickness.
Applicable Scenarios of Horizontal Foam Cutter:
Sponge block slitting;
sofa cushion cutting;
preliminary cutting of large materials
