Cnc Template Sewing Machine High Speed Touch Screen Car Seat Backpack Template Sewing Machine
Cnc Template Sewing Machine High Speed Touch Screen Car Seat Backpack Template Sewing Machine
300X200 Template Sewing Machine is an automated sewing device that uses computer programming to control the sewing trajectory, ensuring precise stitching along a pre-set "template" path.

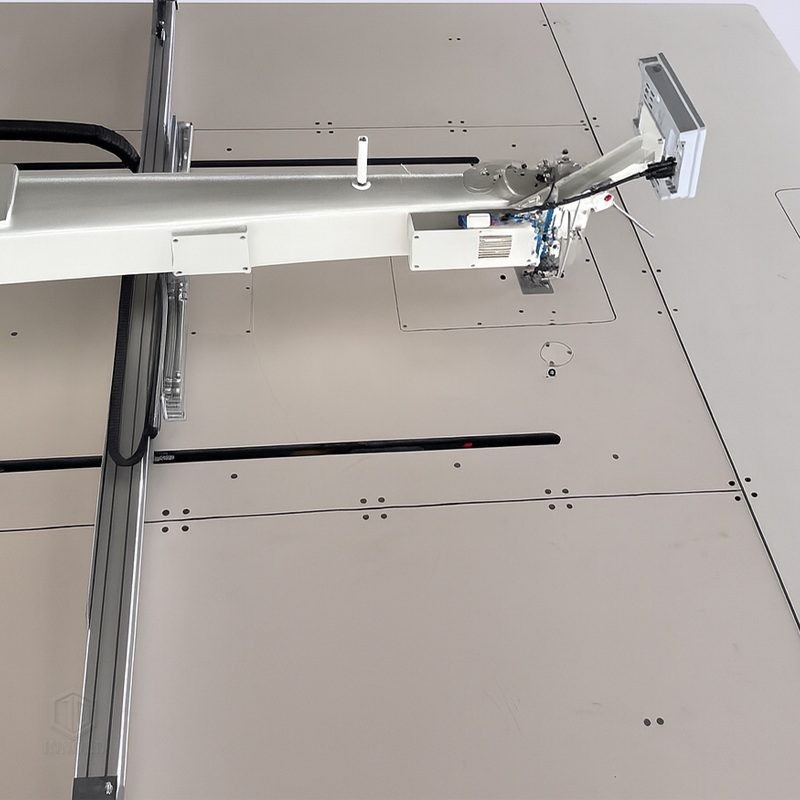

Combining a computer control system, servo motors, an XY worktable, and a template fixture, Template Stitching System can quickly produce complex sewing shapes and repetitive processes, significantly improving production efficiency and sewing precision.
| Drive | Independent drive |
| Stitch | Single needle lockstitch |
| Stitch Length | 0.05-12.7mm |
| Rotary Hook | 1.6 times hook (Japan Hirose) |
| Sewing Speed | 3000rpm |
| Hook Cooling | Standard |
| Control | 5-axis linkage motion control card |
| Voltage | 220V/230 Volt, single phase. 380v, threephase |
| Data transmission | 100M Ethernet port transmission |
| Rotary Hook | 1.6 times hook (Japan Hirose) |
| Auto Trimmer | Standrad |
| Max. Stitch | 100000 stitches/1 pattern |

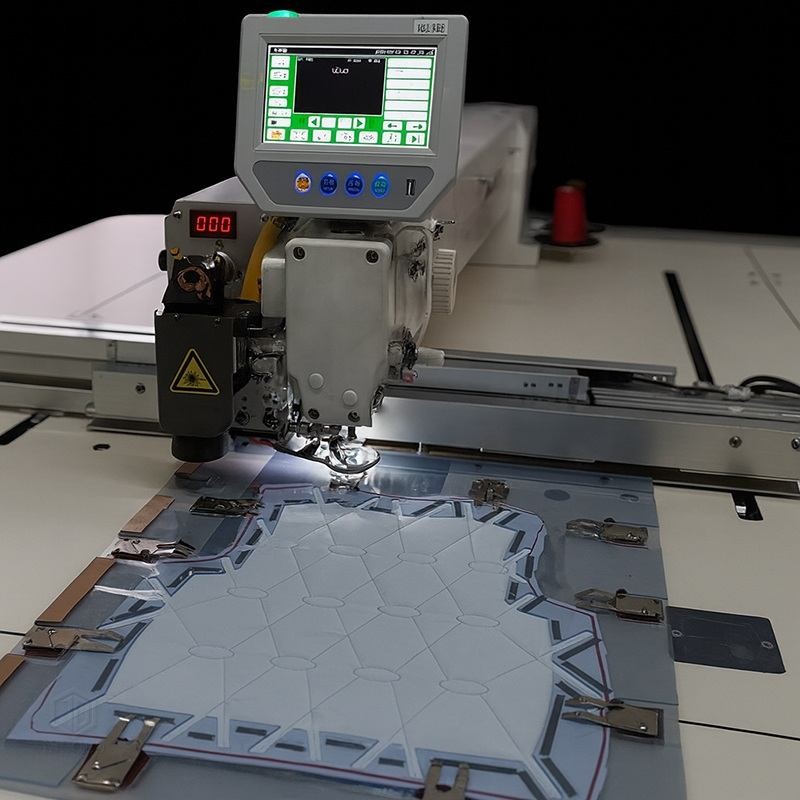

How it works of Touch Screen Template Sewing Machine:
The operator first loads the sewing template program into a computer or the machine's touchscreen.
The fabric is then secured to the corresponding template fixture.
After starting the machine, the template machine automatically moves the fabric and controls the needle direction according to the program, achieving precise sewing.
No manual direction control is required.
Backpack Template Sewing Machine sewing path is completely consistent every time.
Complex patterns and curved lines can be sewn.
Key Features of Car Seat Template Sewing Machine:
High Precision: A servo-driven XY coordinate system ensures precise and consistent stitching.
High Efficiency: Automatic feeding, thread trimming, and presser foot lift make sewing several times faster than manual sewing.
Programmable: Pattern files can be imported via USB or a computer for quick changes in sewing styles.
Excellent Repeatability: The same template can be used repeatedly, ensuring consistency from product to product.
Versatility: A variety of complex patterns can be sewn, including straight lines, curves, arcs, and decorative lines.
Easy Operation: One person can operate multiple machines, reducing labor costs.
Common Applications of Sewing Machine With Template System:
Apparel: Sewing pockets, sleeves, zipper edges, decorative lines, and other fixed-pattern patterns.
Footwear: Shoe upper stitching, upper seams, and decorative lines for sneakers.
Leather Goods: Precision stitching for bags, belts, and wallets.
Automotive Interiors: Curved sewing of seats, steering wheel covers, and interior fabrics.
Home Textiles: Decorative stitching for curtains, sofa covers, and cushions.
