Diy Plush Filling Machine Consistent Ball Fiber Toy Stuffing Filling Machine Toy Filling Machine Price
Diy Plush Filling Machine Consistent Ball Fiber Toy Stuffing Filling Machine Toy Filling Machine Price
| Model | IN-D1500 | IN-D1200 |
| Capacity | 40-80kg/h | 50-100kg/h |
| Size | 700*700*1500mm | 800*800*1200mm |
| Weight | 100kg | 120kg |
| Power | 0.75kw | 0.75kw |
| Voltage | Customized | |
| Other Styles and other capacity quantities can be customized | ||

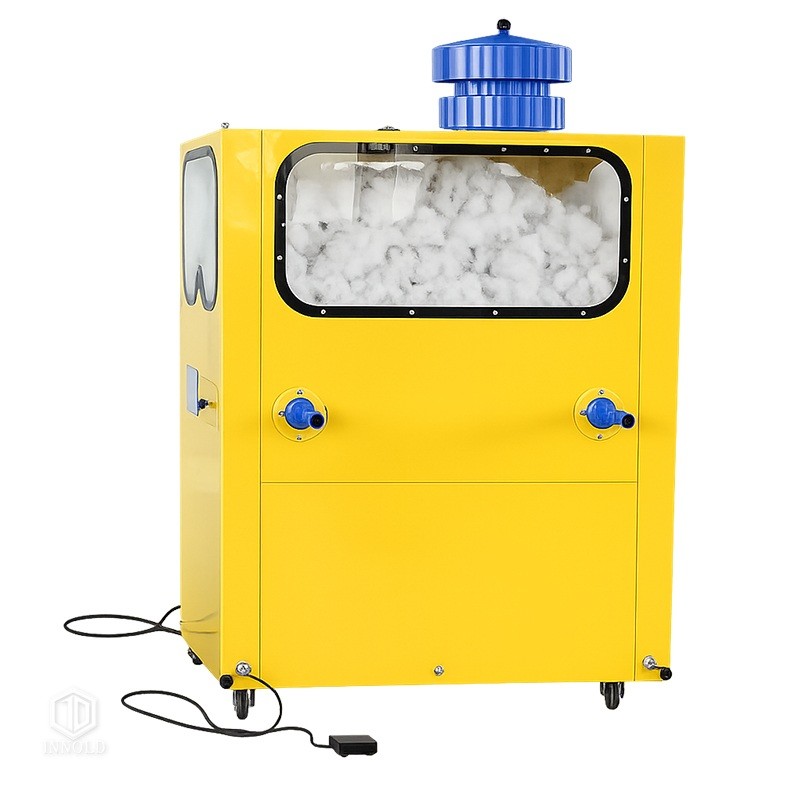

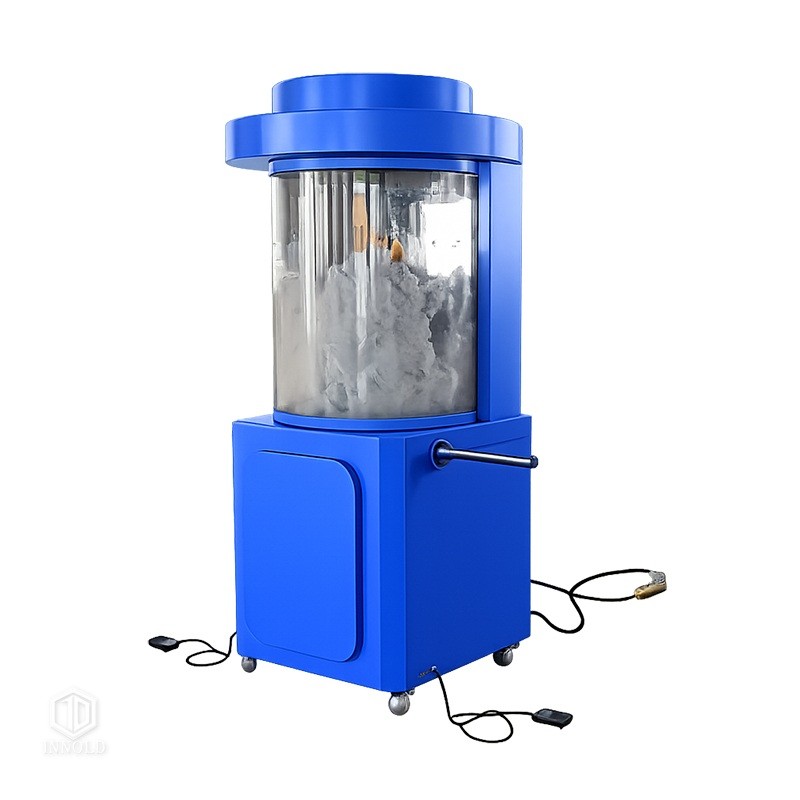

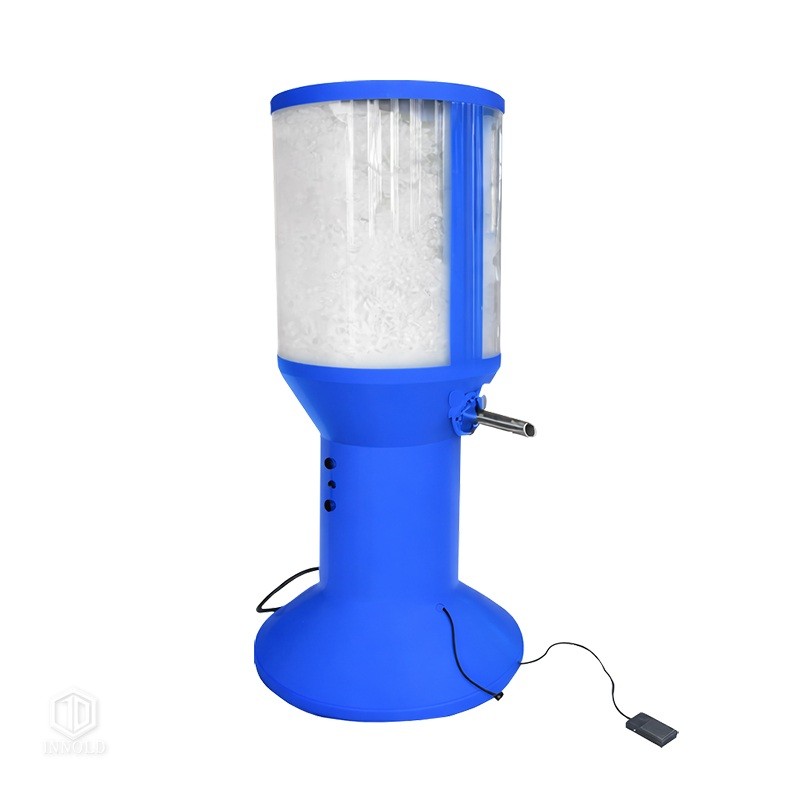

Ball Fiber Toy Stuffing Filling Machine also known as Toy Filling Machine Price, is a device specially used to automatically convey and evenly inject filling materials such as loose polyester fiber, cotton fiber or foam particles into various soft toys such as dolls, teddy bears, and dolls. It is often equipped with a foot switch and filling nozzles of various diameters to meet the filling needs of dolls of different sizes, significantly saving manpower and improving production efficiency.
Working principle Automatic Toy Stuffing Machine：
Material preparation and opening: The raw materials (such as polyester filaments or short-cut fibers) are first loosened by the Opening Machine and impurities are partially removed to obtain a uniform and loose fiber flow.
Airflow/screw propulsion: The loose fibers are pressurized by a fan or screw propeller and conveyed to the inside of the doll through a hose to avoid the unevenness and inefficiency of manual drawing filling.
Foot control and precision feedback: The operator starts or stops filling through the foot switch. Some high-end models can also be equipped with photoelectric or weighing metering systems to achieve real-time monitoring and precision control of the filling amount (±1 g level).
Key features and advantages Toy Making Machine Cost：
Multi-nozzle fast switching: Common nozzle diameter range is 25 mm–50 mm, which can be quickly replaced according to the size of each part of the doll to improve the efficiency of changeover.
Energy-saving: The advanced ESFF system can not only ensure stable fiber delivery, but also greatly reduce fan power and air source consumption.
Automated safety protection: PLC control and anti-blocking, metal detection and other functions can automatically stop and warn when blockage or abnormality is detected to ensure the safety of equipment and personnel.
Clean and closed operation: The fully enclosed body and observation window design effectively reduce fiber flying, keep the production site clean, and enhance the corporate image.
