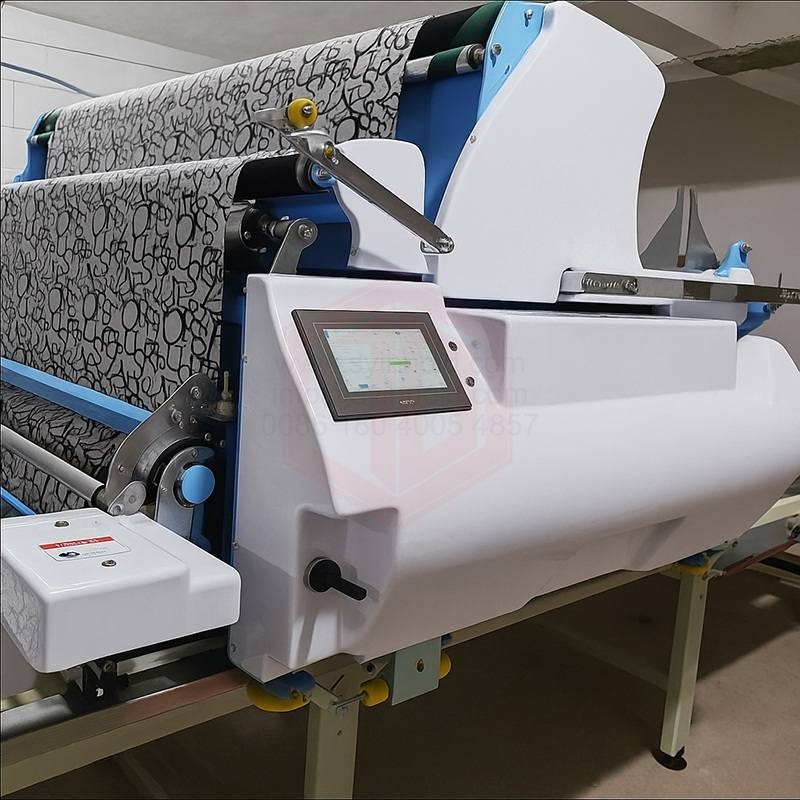

Fabric Lay Up Machine Air-Cushion Fabric Spreading Table Machine

Fabric Lay Up Machine is an automated device used to lay fabric flat, evenly, and without tension on a cutting table. It is a key piece of equipment in the production of textiles such as clothing, home textiles, and automotive interiors, preceding the cutting process. It significantly improves spreading efficiency and ensures the flatness and alignment accuracy of fabric layers.

I. Working Principle of Fabric Lay Up Machine：

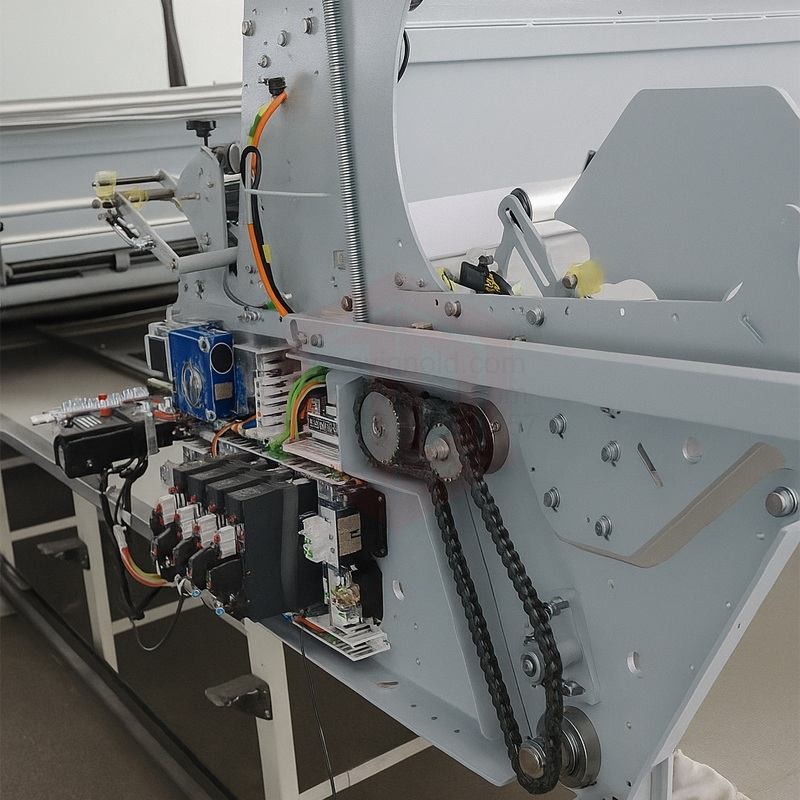

The Fabric Spreading Machine uses a motor, transmission system, sensors, and control system to automatically pull out and evenly spread the fabric roll onto the cutting table.

The basic principle is as follows:

1. Fabric Roll Loading: The fabric roll is mounted on the machine's fabric roll rack.

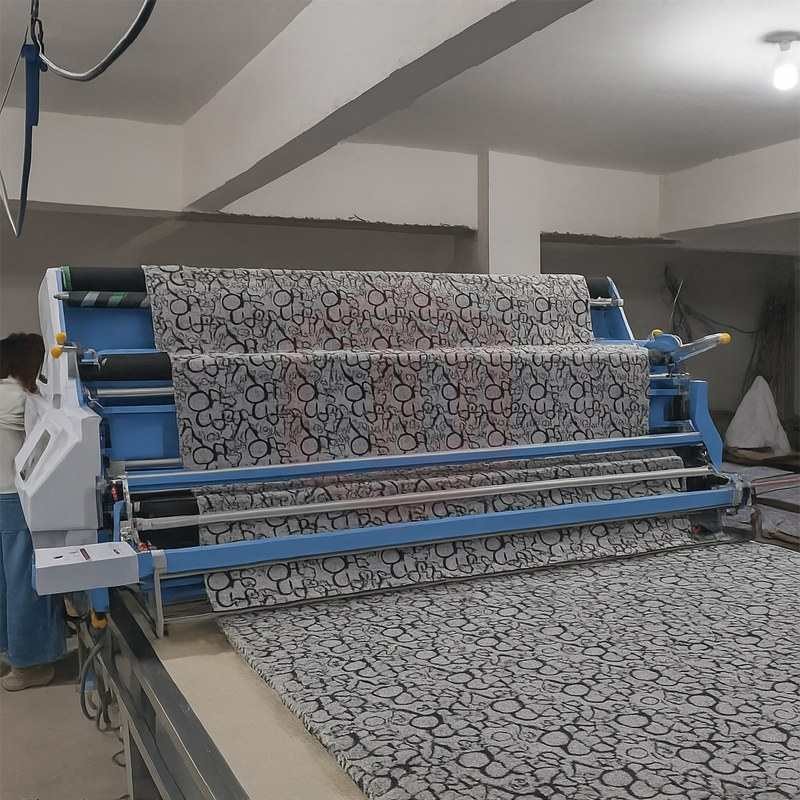

2. Automatic Movement:The machine moves automatically along the cutting table.

3. Even Fabric Laying:Through tension control, roller conveying, and an automatic leveling device, the fabric is laid flat on the table.

4. Automatic Cutting (Some Models)After each layer is laid, the fabric is automatically cut to prepare for the next layer.

II. Main Function Of Fabric Lay Up Machine:

1. Multi-Layer Fabric Laying: It can automatically lay dozens of layers of fabric, preparing for automatic cutting machines or manual cutting.

2. Automatic edge alignment: An electric eye detects the fabric edge and automatically corrects its direction to prevent skewing.

3. Tension-free fabric laying: Controls fabric tension to prevent elastic fabrics from being stretched and deformed.

4. Automatic cutting function: Automatically cuts the fabric when laid to the specified length.

5. Labor savings: One automatic Fabric Laying Machine can replace 2-3 manual fabric laying workers.
