Mattress Edge Binder Machine Mattress Tape Edge Machine Head Price
Mattress Edge Binder Machine Mattress Tape Edge Machine Head Price

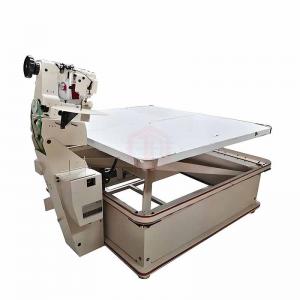

Mattress Edge Binder Machine is a type of industrial sewing equipment specifically designed for hemming and sealing mattress edges. It's primarily used to securely sew mattress fabric, hemming tape, and foam layers together, ensuring a smooth, aesthetically pleasing, and durable edge.
| Model | IN-M2L | IN-M2S |
| Sewing Head | 8B-L | SINGER 300U |
| Weight | 480KG | |
| Table Size | 1500*2000MM/1600*2000MM/1800*2000MM | |
| Table Lifting | By Electric Button (four pillar in four corners of table) | |
| Head Lifting | By Electric Button | |
| Table Lifting Range | 0-280MM | |
| Mattress Thickness | Normal 20-350MM , Customized 350-550MM | |
| Thread Style | Lock Stitch Big Shuttle | Chain Stitch |
1. Working Principle Mattress Edge Binder Machine
The Mattress Hemming Machine uses a motor to drive the sewing head along the edge of the mattress. The worktable automatically rotates and raises, allowing the mattress to be hemmed 360° in a fixed position.
The operator simply places the mattress on the worktable, and the machine automatically completes the hemming and pressing processes.
2. Main Components Mattress Edge Binder Machine

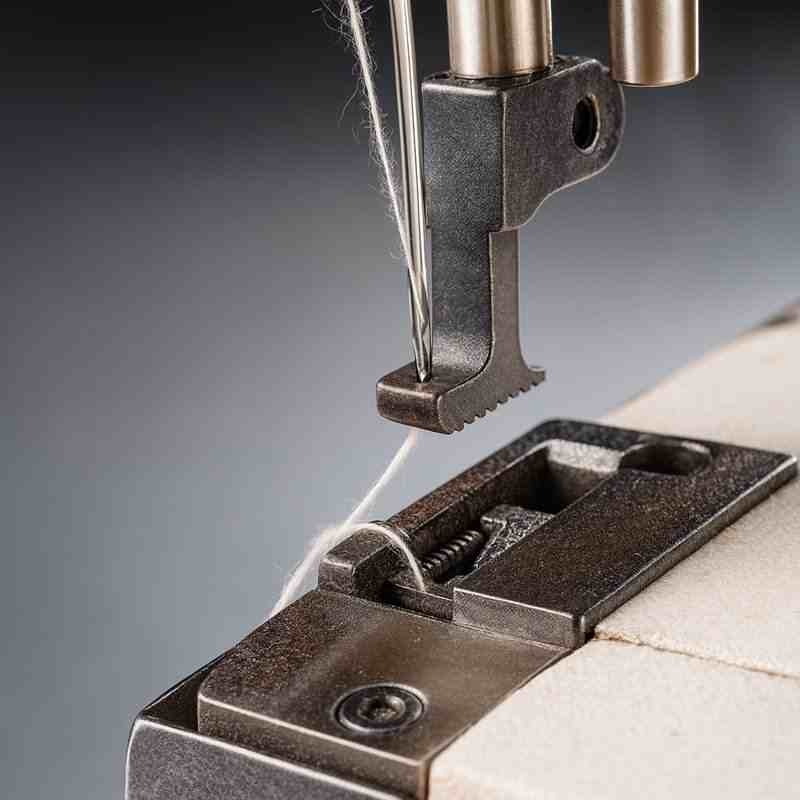

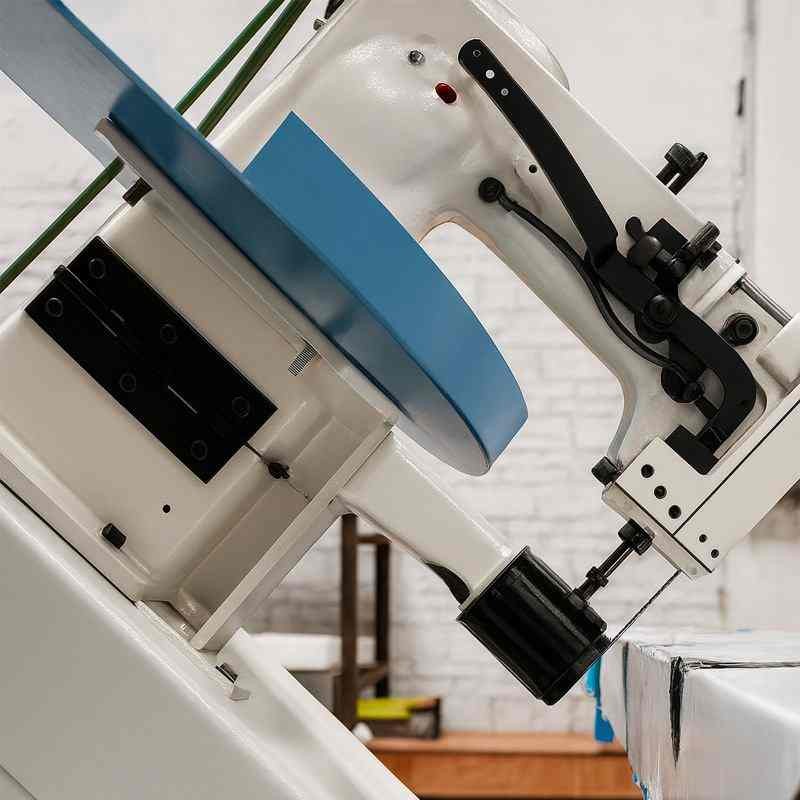

Sewing head: The core component of the machine, used for hemming.
Worktable: Supports the mattress and can be electrically raised or rotated to facilitate the processing of mattresses of varying sizes.

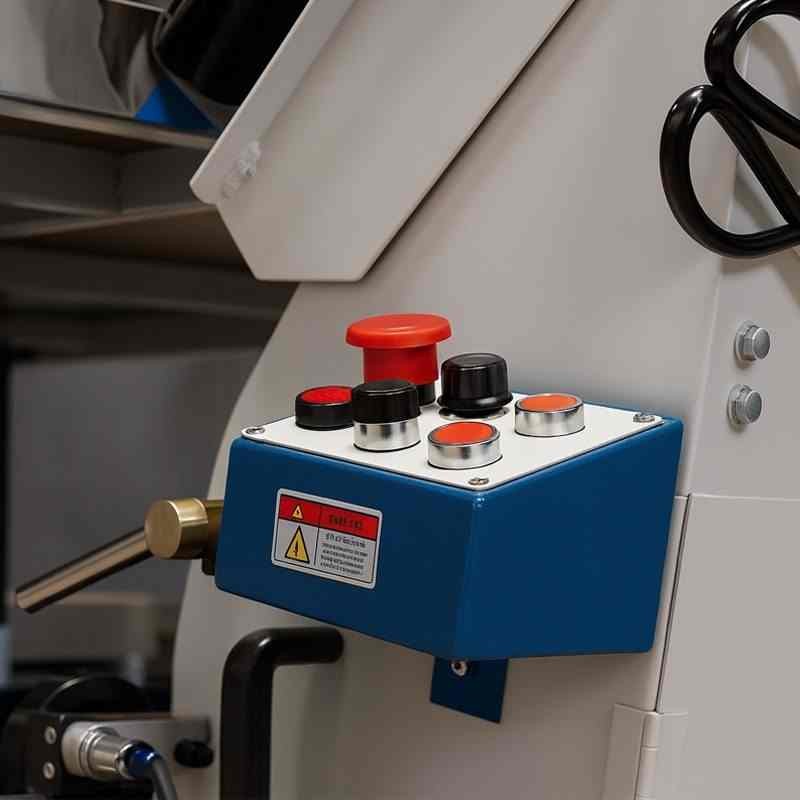

Operation panel: Controls machine start/stop, speed, lift, and angle adjustment.
Motor and drive system: Provides power to coordinate the sewing head and worktable.
Guide rail system: Ensures a smooth sewing path and even edges.
3. Applications
Mattress hemming machines are widely used in:
Various spring mattresses
Latex mattresses
Foam mattresses
Hotel and home mattress production lines
4. Main Features
High degree of automation: Supports automatic rotation, lifting, and corner sealing.
Neat seams: Tight seams with no skipped stitches.
Adaptable to various thicknesses: Adjustable workbench height accommodates mattresses of varying thicknesses.
Easy to operate, safe, and stable: Equipped with an emergency stop button and electronic control system.
