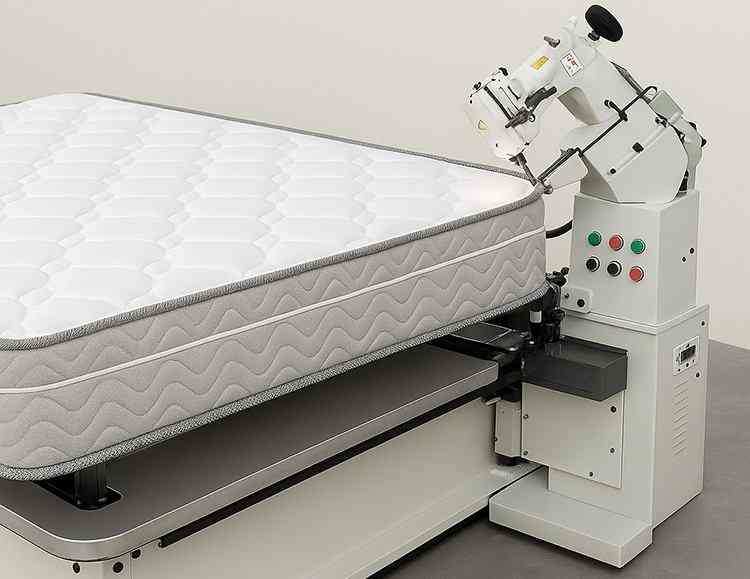

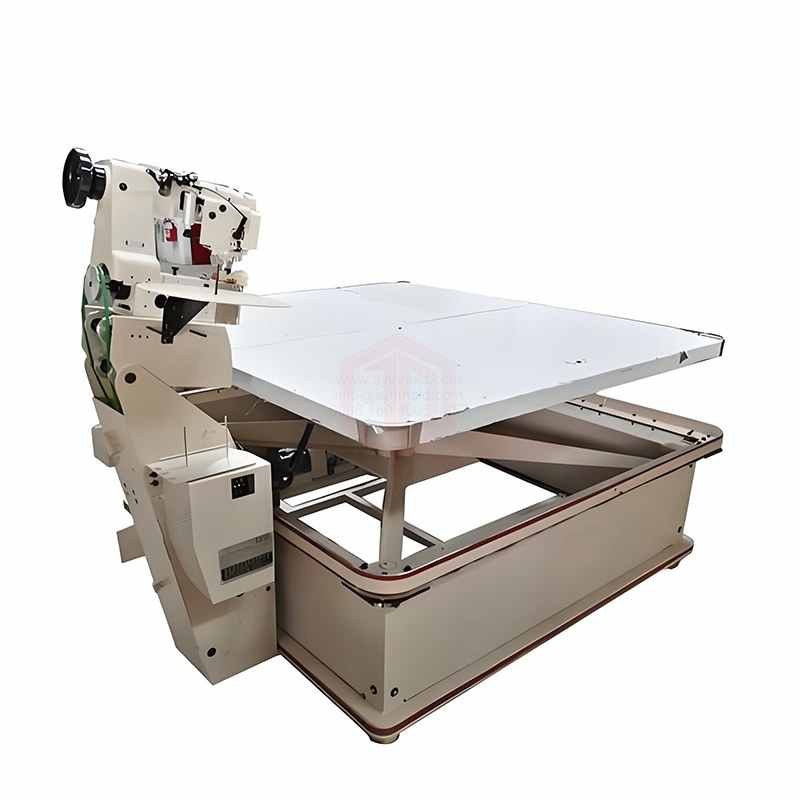

Mattress Tape Edge Sewing Machine Automatic Mattress Tape Edge Binder Machine Adjustable Sewing Head Angle
Mattress Tape Edge Sewing Machine Automatic Mattress Tape Edge Binder Machine Adjustable Sewing Head Angle
Mattress Tape Edge Sewing Machine is a type of industrial sewing equipment specifically designed for hemming and sealing mattress edges. It's primarily used to securely sew mattress fabric, hemming tape, and foam layers together, ensuring a smooth, aesthetically pleasing, and durable edge.
| Model | IN-M2L | IN-M2S |
| Sewing Head | 8B-L | SINGER 300U |
| Weight | 480KG | |
| Table Size | 1500*2000MM/1600*2000MM/1800*2000MM | |
| Table Lifting | By Electric Button (four pillar in four corners of table) | |
| Head Lifting | By Electric Button | |
| Table Lifting Range | 0-280MM | |
| Mattress Thickness | Normal 20-350MM , Customized 350-550MM | |
| Thread Style | Lock Stitch Big Shuttle | Chain Stitch |
1. Working Principle Mattress Tape Edge Sewing Machine
The Mattress Hemming Machine uses a motor to drive the sewing head along the edge of the mattress. The worktable automatically rotates and raises, allowing the mattress to be hemmed 360° in a fixed position.
The operator simply places the mattress on the worktable, and the machine automatically completes the hemming and pressing processes.

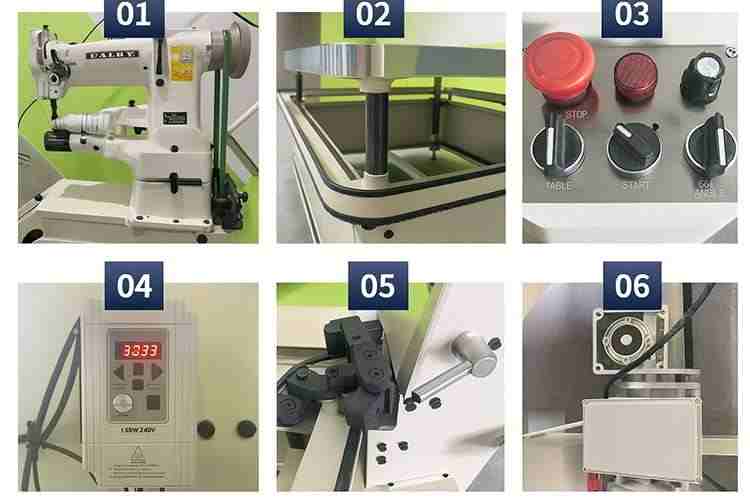

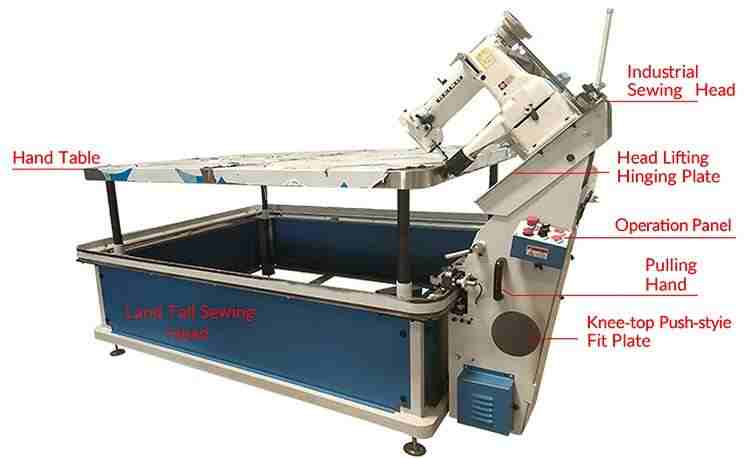

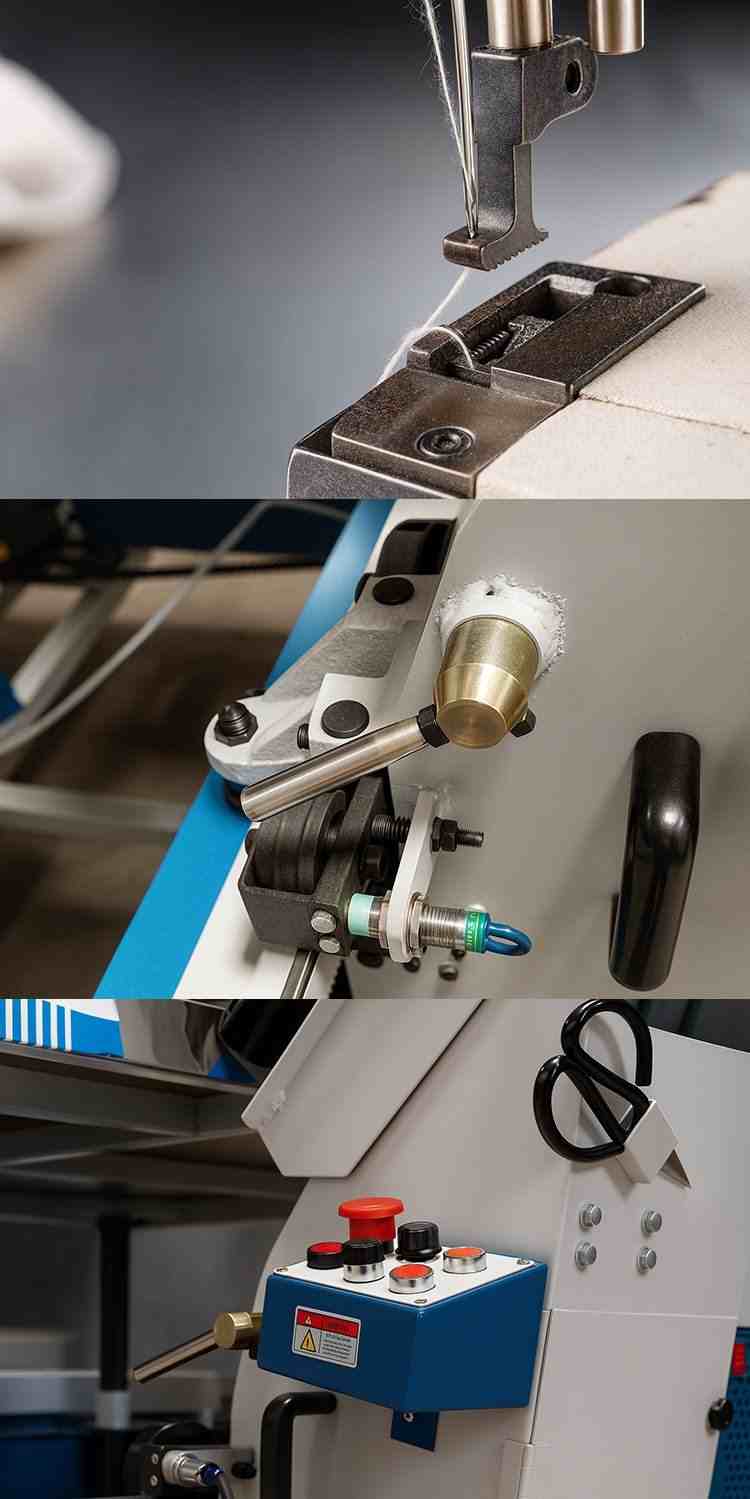

2. Main Components Mattress Tape Edge Sewing Machine

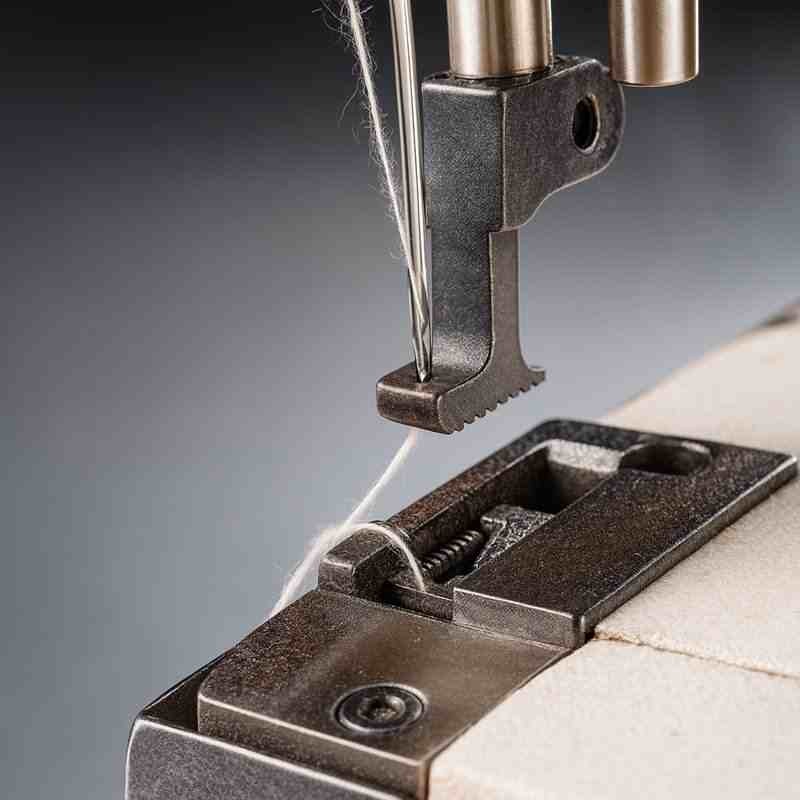

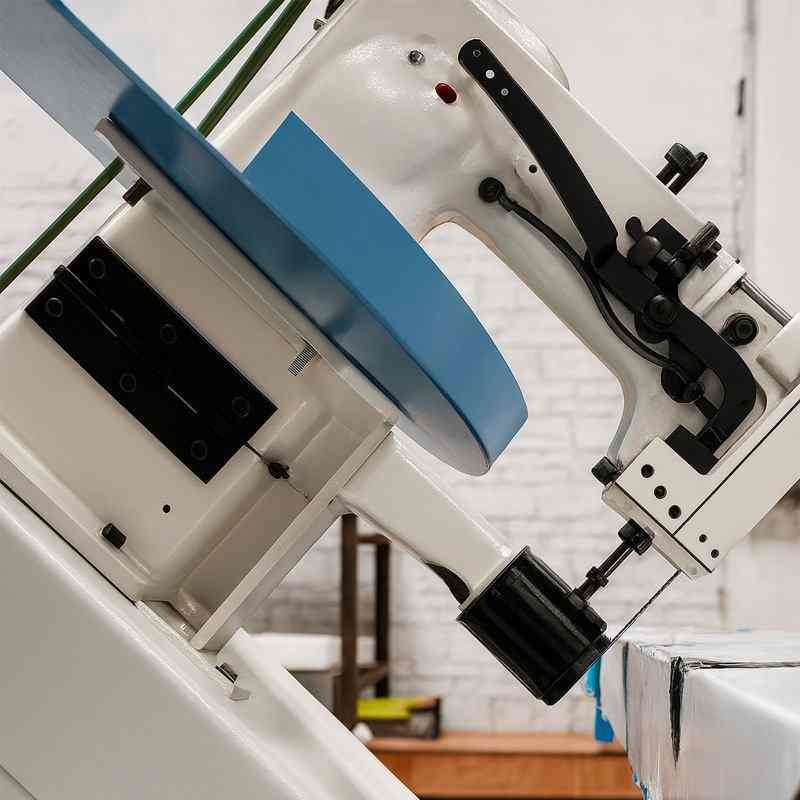

Sewing head: The core component of the machine, used for hemming.
Worktable: Supports the mattress and can be electrically raised or rotated to facilitate the processing of mattresses of varying sizes.

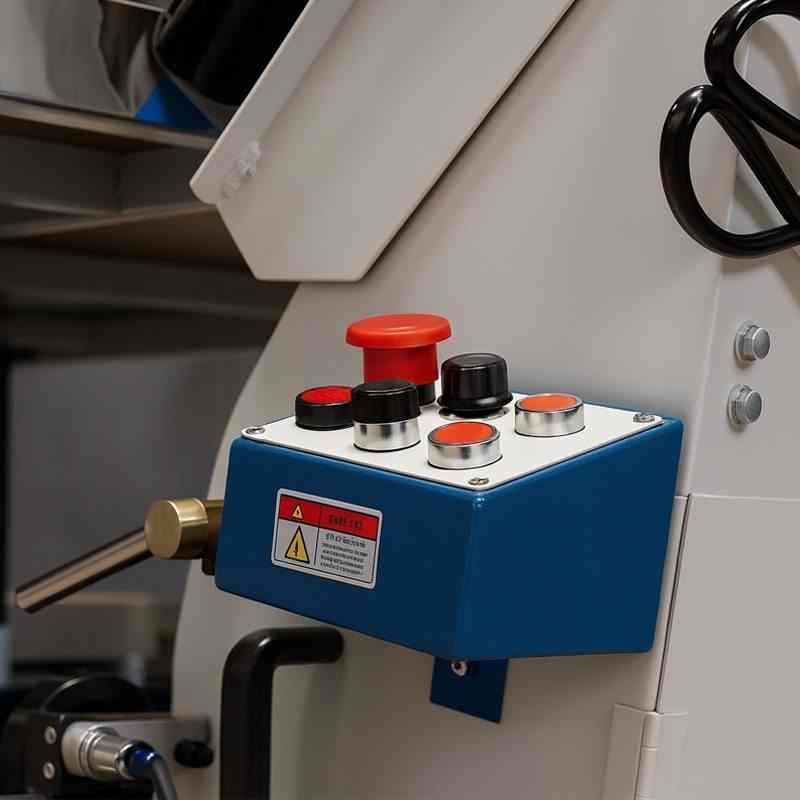

Operation panel: Controls machine start/stop, speed, lift, and angle adjustment.
Motor and drive system: Provides power to coordinate the sewing head and worktable.
Guide rail system: Ensures a smooth sewing path and even edges.
3. Applications
Mattress hemming machines are widely used in:
Various spring mattresses
Latex mattresses
Foam mattresses
Hotel and home mattress production lines
4. Main Features
High degree of automation: Supports automatic rotation, lifting, and corner sealing.
Neat seams: Tight seams with no skipped stitches.
Adaptable to various thicknesses: Adjustable workbench height accommodates mattresses of varying thicknesses.
Easy to operate, safe, and stable: Equipped with an emergency stop button and electronic control system.
