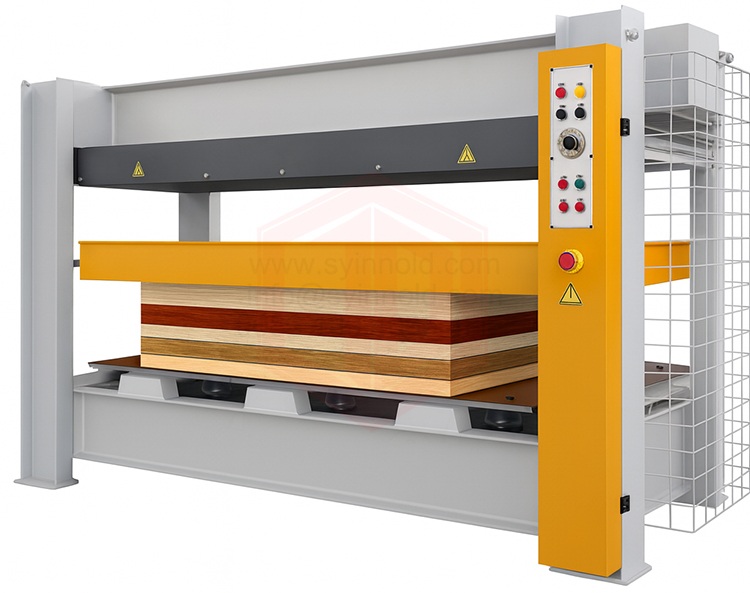

Single-Layer Hot Press Machine Hydraulic Electric Balanced Platen Hot Press For Even Heating
Single-Layer Hot Press Machine Hydraulic Electric Balanced Platen Hot Press For Even Heating
Single-Layer Hot Press Machine uses a hydraulic system to generate strong pressure, while a heating plate (hot press plate) provides a stable high temperature. This rapidly cures the glue in the wood or artificial board, firmly bonding the layers together and forming a smooth, structurally stable board.
| Product Name | Three-layer hot press | Four-layer hot press | Five-layer hot press |
| Nominal Total Pressure | 1600KN | 2000kn | 2000kn |
| Number of Hot Platens | 4 Pieces | 5 Pieces | 6 Pieces |
| Specifications of Hot Platens | 3200*1600*42mm | 2500*1300*42mm | 2600*1300*42mm |
| Unit Surface Pressure | 3.12kg/square centimeters | 6.5kg/square centimeters | 6.15kg/square centimeters |
| Number and Diameter of Cylinders | 8 pieces/100mm | 10 pieces/100mm | 10 pieces/100mm |
| Closing Speed | 40mm/s | 40mm/s | 40mm/s |
| Heating Method and Medium | Electric heating medium circulation | Electric heating medium circulation | Electric heating medium circulation |
| Plate Opening Method | Electric | Electric | Electric |
| Gap Between Hot Platens | 100mm | 100mm | 100mm |
| Rated Hydraulic Pressure | 25mpa | 25mpa | 25mpa |
| Cylinder Stroke | 300mm | 400mm | 500mm |
| Installed Power | Hydraulic 7kW, Heating 36kW/Conductive 4kW | Hydraulic 7kW, Heating 36kW/Conductive 1.5kW | Hydraulic 7kW, Heating 36kW/Conductive 4kW |
| Maximum Operating Temperature | 180°C | 180°C | 180°C |
A: The basic process includes Single-Layer Hot Press Machine:
Loading: The glued veneer or board is stacked together.
Heating and Pressing: The machine heats to a set temperature (usually 120–180°C), and a hydraulic cylinder provides the required pressure.
Pressure-Dwelling and Curing: The high temperature and high pressure are maintained for a period of time to fully cure the glue.
Pressure-Relief and Discharging: The pressure is released and the pressed board is removed.

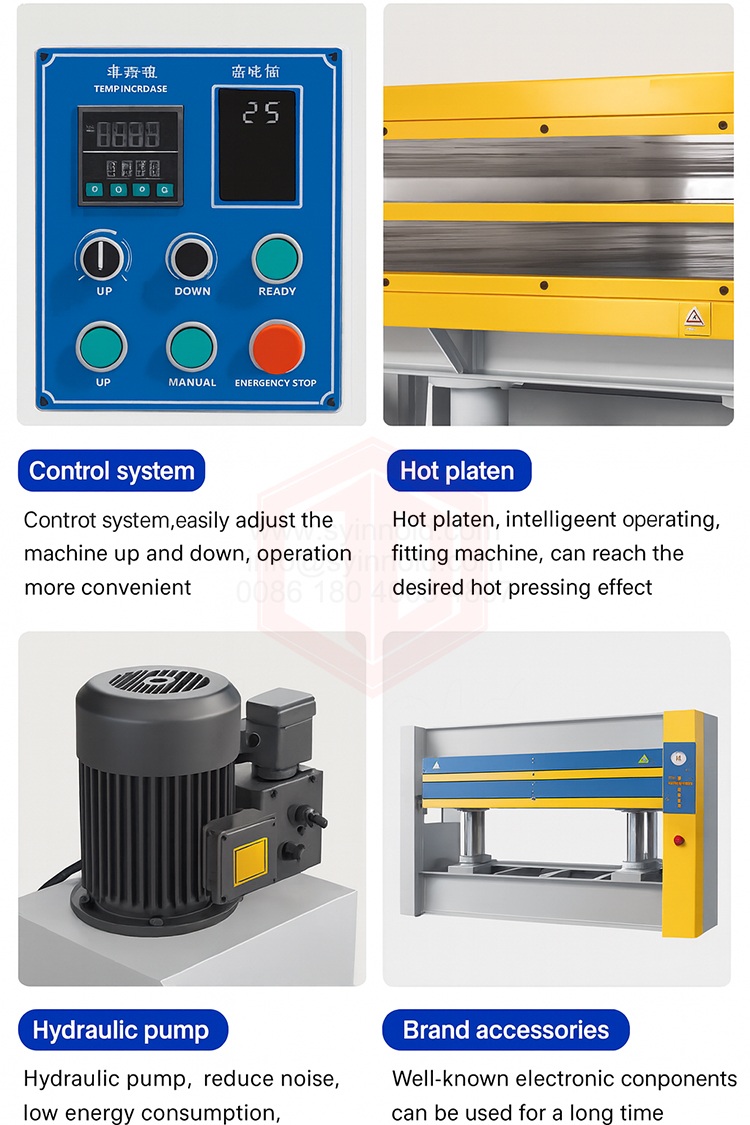

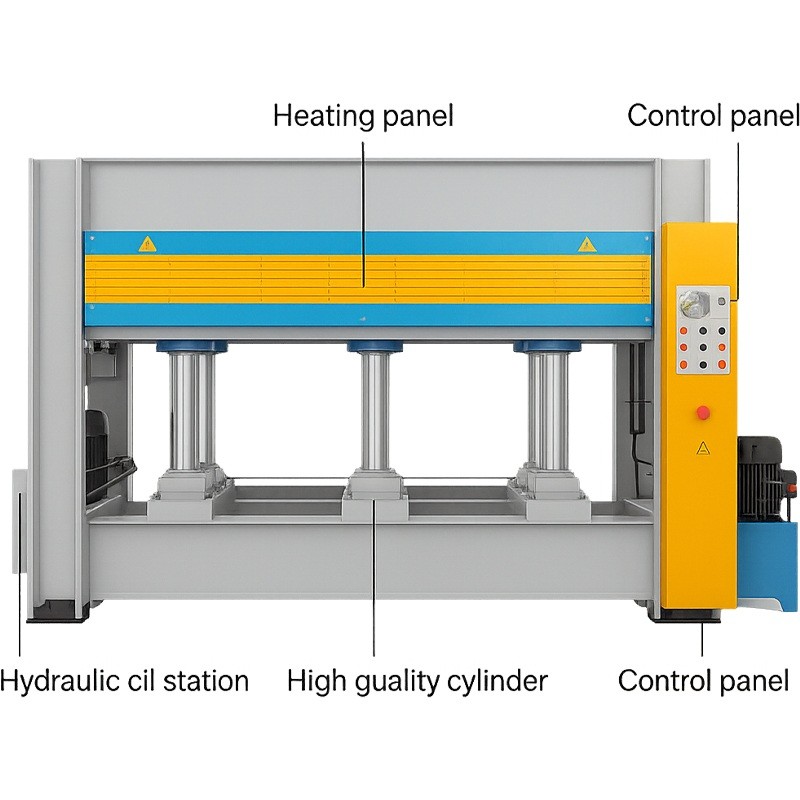

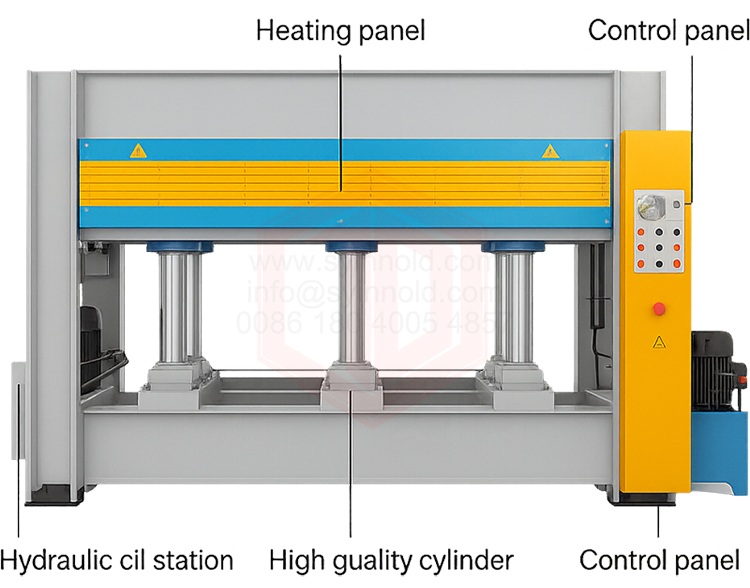

B: Main Components Single-Layer Hot Press Machine
Heating Plate: Conducts heat and ensures uniform temperature.

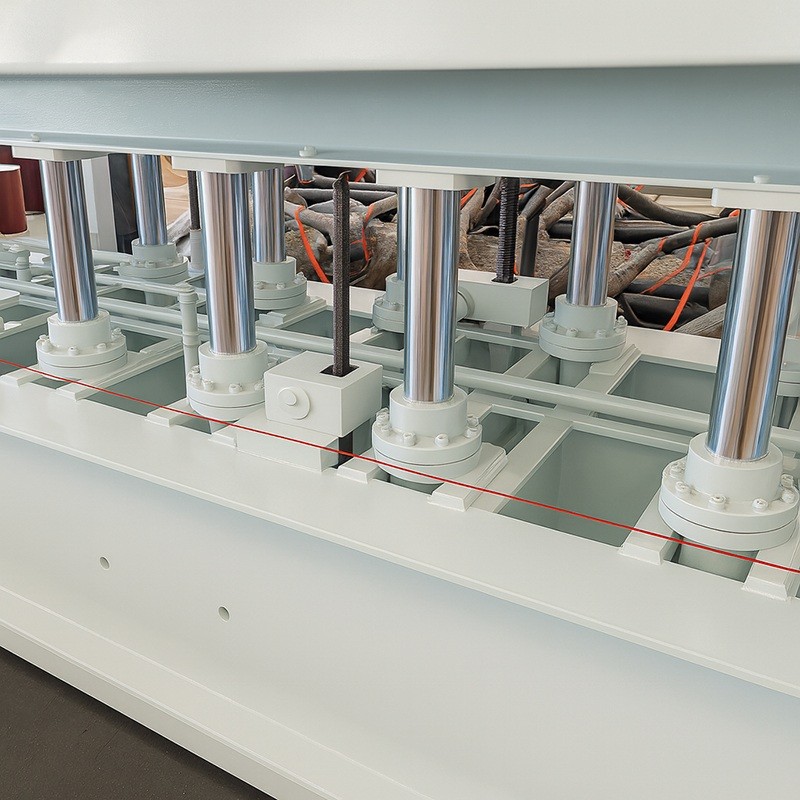

Hydraulic Cylinder: Provides high pressure to achieve the desired pressing effect.

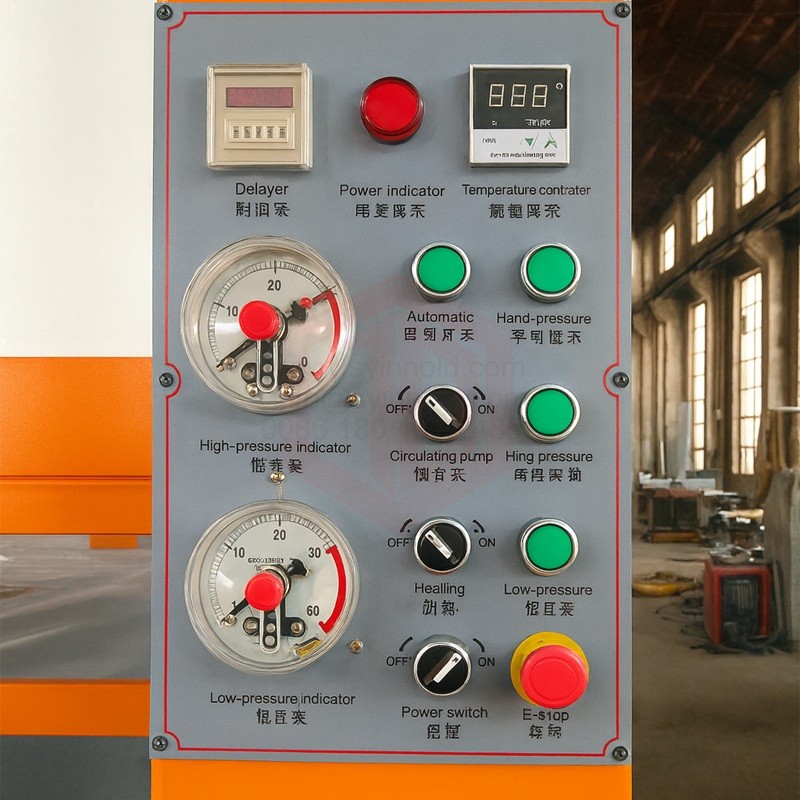

Control Panel: Sets parameters such as temperature, pressure, and time.
Hydraulic Oil Station: Drives the hydraulic system. Heating System: Common heating methods include electric heating, steam heating, and thermal oil heating.
C: Common Applications
Hot pressing of wooden door veneers (composite doors, fire-rated doors);
Laminating of wood-based panels and plywood;
Veneering of furniture and decorative panels;
Laminating of flooring surfaces;
Hot pressing of aluminum honeycomb panels,
electric heating panels,
PVC composite panels, and polyurethane foam panels
D: Equipment Features
Stable pressure and high forming precision;
Uniform heating and strong bonding;
Adjustable temperature and pressure;
High degree of automation,
labor-saving;
Suitable for hot pressing of a variety of materials
