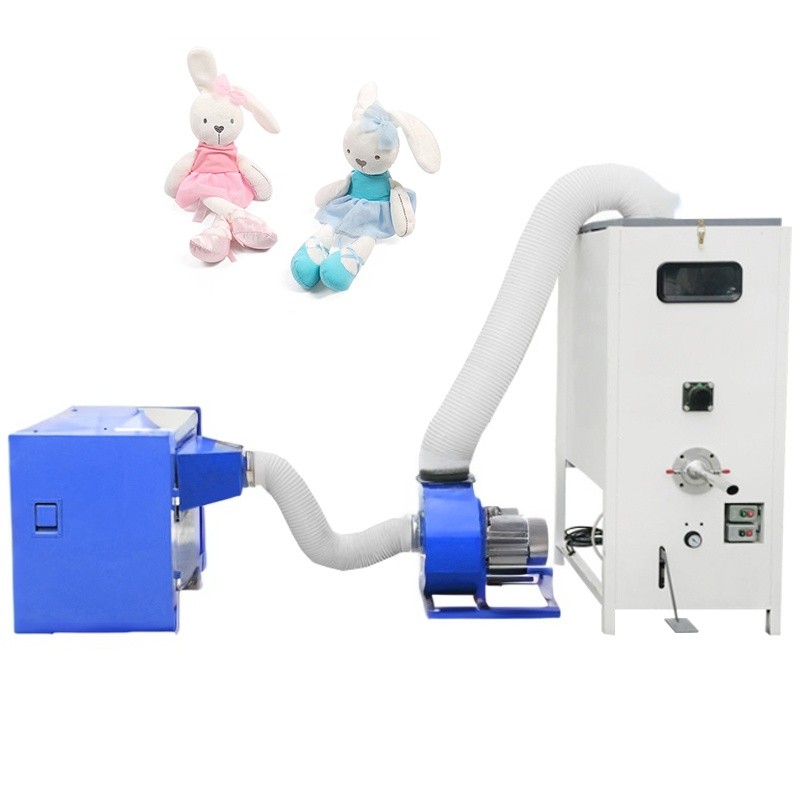

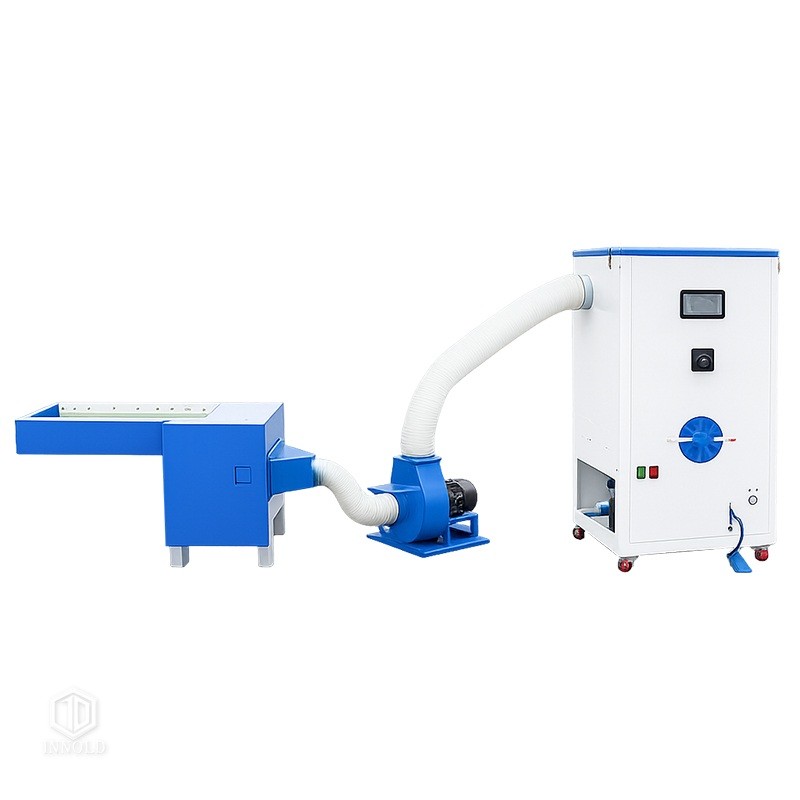

Stuffed Animal Filling Machine Semi Fiber And Feather Pillow Stuffing Machine

Stuffed Animal Filling Machine adopts the electronic pedal microswitch and the reliable and advanced control technology, which enables the machine to load and control the cotton and precisely controls the amount of cotton spraying.It adopts thickened gas tank to ensure that the machine has a strong enough working pressure.The machine adopts dismountable multiple cotton pipe to meet the needs of filling toys of different sizes. It has the advantages of high speed, fluffy effect, softness, elasticity and less cotton consumption. The gas consumption is reduced by 30% compared with the same kind of products. Besides, this machine saves power and reduces cost, and is suitable for filling toys, pillows, cushions, sofas, etc.

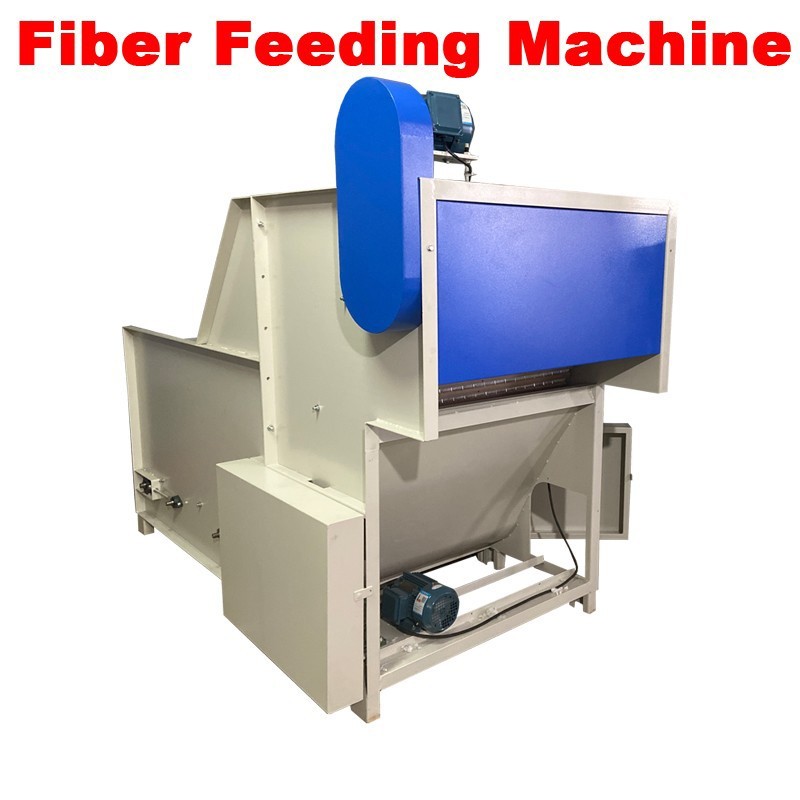

1.Fiber Feeder

This automatic Cotton Feeding Machine is primarily used for the automatic feeding and pretreatment of fluffy materials such as polyester fibers, PP cotton, and hollow fibers, providing a stable and uniform supply of raw materials to downstream opening and filling machines.

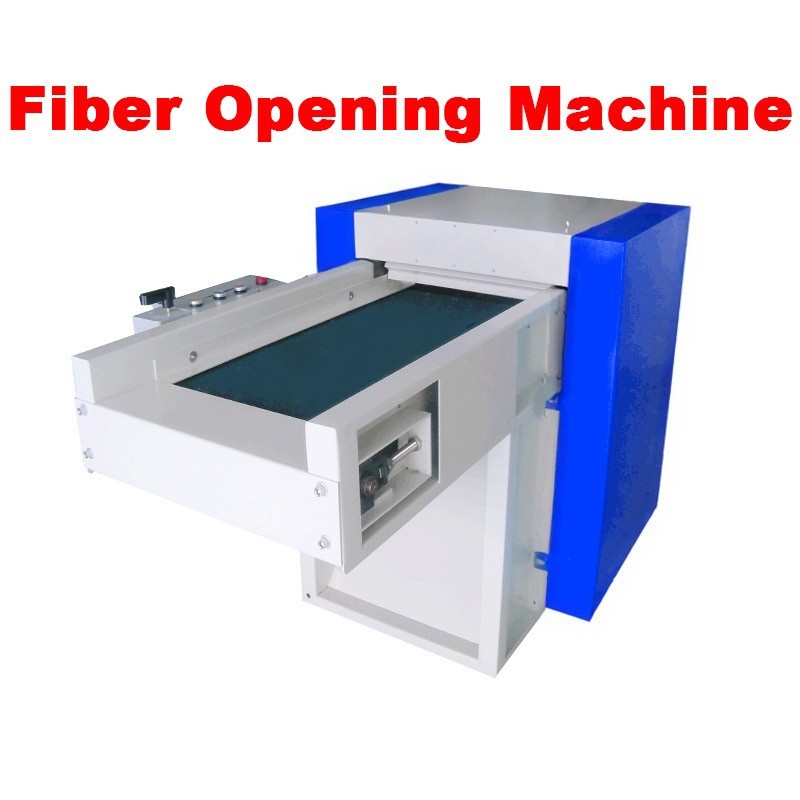

2.Fiber Opening Machine

It is the most advanced, the smallest size and the most powerful products athome and abroad.

It can open 15%-20% more per hour than similar products.

This is fully enclosed with neat beautiful appearance. Besides. it has itsown protection device.

This is casy and safe to operate, lift and install.

This Machine uses puling force produced by thehobbing to open all kinds fibers, It loosen and open more than 99%, Besides, it has the same loosening effect on the woolen blanket and theleRover bits.

3.Sponge Shredder

Sponge Crusher is a kind of equipment specially used to cut various sponges and foam plastic materials into small particles or fragments. It can not only efficiently process various polyurethane foams such as ordinary sponges, slow rebound sponges, memory sponges and latex sponges, but also crush plastic foam materials such as PVC, PE, EVA, and even various foam plastics such as EPS, EPE, EPP, XPS, PUR, etc., to meet various application needs such as furniture filling, toy filling and environmental recycling.

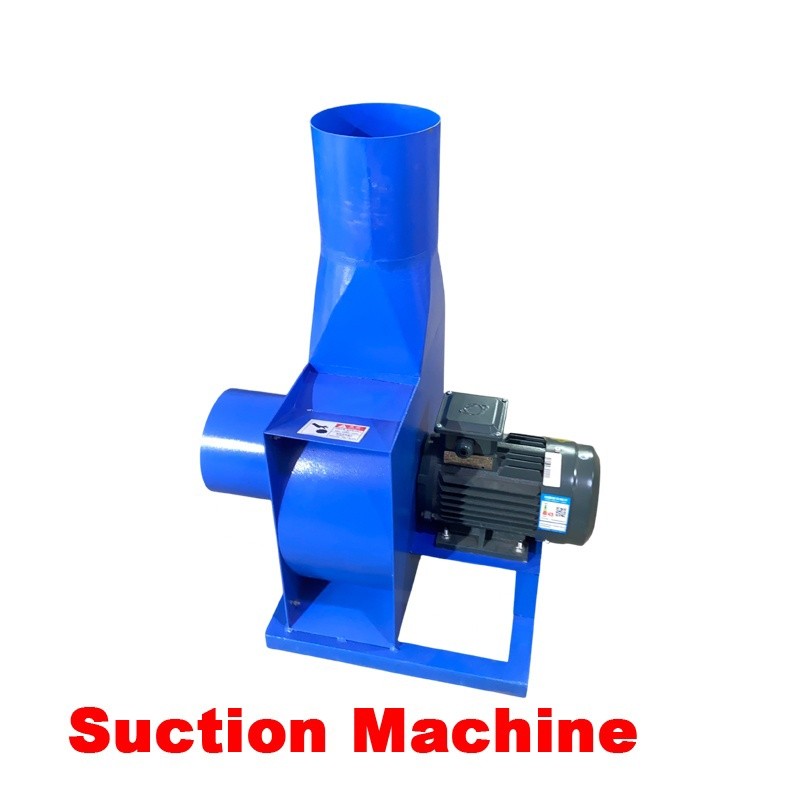

4.Fiber Blowing Machine

The Cotton Suction Machine is a special conveying equipment that uses the airflow negative pressure principle to "suck" loose fiber cotton (such as polyester fiber cotton, down, PP cotton, pearl cotton, etc.) from the silo or bag and transport it to the next process (such as opener, Quantitative Filling Machine, filling machine). It is widely used in modern home textiles, toys, clothing and recycled fiber recycling production lines, which can effectively replace manual handling and improve the level of production automation.

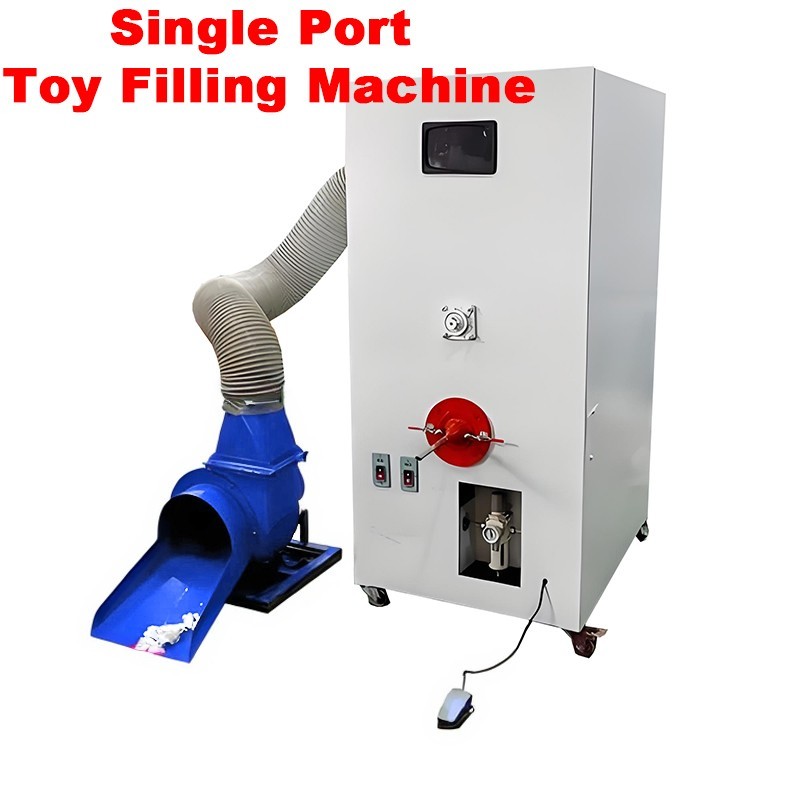

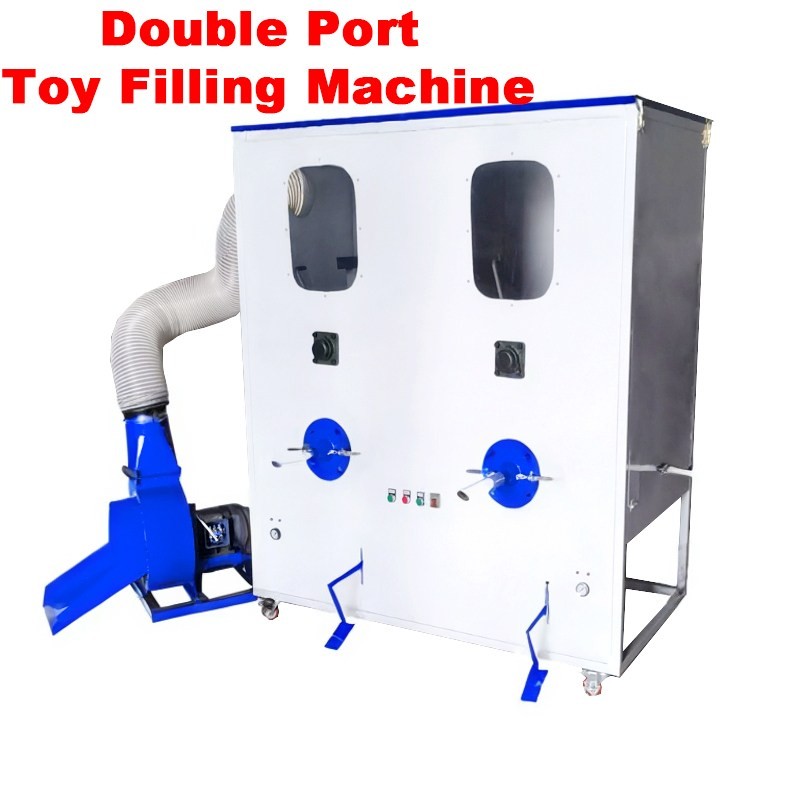

6.Toy Filling Machine

Model	ABB-1550(Single)	AB-005(Double)	AB-006(Double)
Capacity	50-60kg/h	80-100kg/h	150-200kg/h
Air Pressure	0.6-0.8Mpa
Voltage	Customizable
Power	0.75kw	1.5kw	2.2kw
Size	1200*800*1550mm	1200*800*1550mm	1400*900*1650mm
Weight	250kg	350kg	500kg
Other Capacity and model can be Customizable

The Stuffed Animal Filling Machine cotton after filling feels softer and the work efficiency is more than 15 times of manual cotton filling; This series is the first choice of many processing equipment manufacturer; The Stuffed Animal Filling Machine can fill materials including: cloth, PP cotton, fiber, foam particles,sponge and avian hair.
